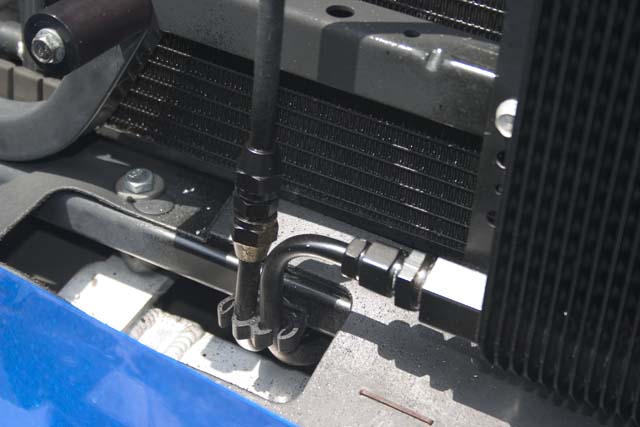

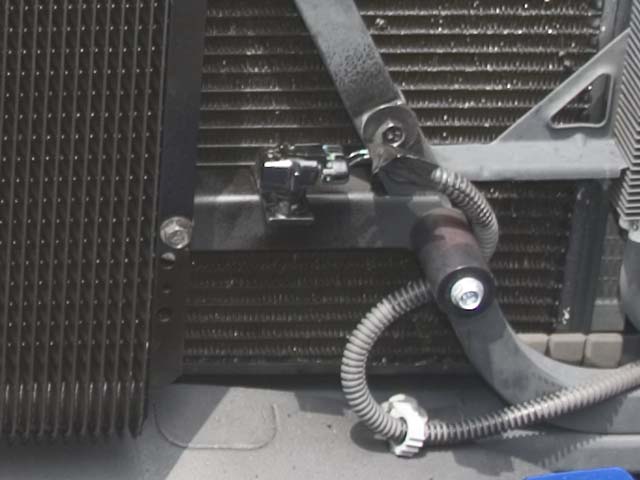

dcairns Posted June 5, 2005 Report Share Posted June 5, 2005 Installed my B&M Transmission cooler today. B&M Coolers 70274 - SuperCooler rated at 29,200 BTU 11"x11"x1-1/2" (has female 1/2 NPT fittings). I wanted to use all metal tubing, rather than hoses. I didn't want to trust hoses. Overall view. I had to fabricate the upper brace from some aluminum angle stock. for the lower brace, I just flipped the stock brace backwards (trimming some excess angle so it would fit. Close up of the plumping. From the cooler, it took an Edelman 210860 (1/2 male NTP to 3/8 female NTP) and then an Edelman 124660 (3/8 male NTP to 3/8 inverted flare). Wish I could have found and adapter to do it in one step . I had to cut the stock tubes with a small tubing cutter and then flare the ends. I used the left over piece of tubing to be the new route up to the top fitting on the cooler. Since I flipped the cross brace around, I tacked a bit of aluminum bar onto it for mounting the outside air temp sensor. Gave it a shot of black paint, while I was at it. In case you are wondering, the big spacers on the bolts that hold the lower brace are left overs from the original heat exchanger for the Radix. I left them there in case I need to add something else in front. Quote Link to comment Share on other sites More sharing options...
misterp Posted June 5, 2005 Report Share Posted June 5, 2005 Nicely done, looks great. Mr. P. Quote Link to comment Share on other sites More sharing options...
XGMTech Posted June 5, 2005 Report Share Posted June 5, 2005 (edited) Great looking install! Yeah, I don't like to trust rubber hoses either; that's how I planned on doing mine (soon). Edited June 5, 2005 by XGMTech (see edit history) Quote Link to comment Share on other sites More sharing options...
zippy Posted June 6, 2005 Report Share Posted June 6, 2005 you still have the heat exchanger down in the bumper area correct? Quote Link to comment Share on other sites More sharing options...
dcairns Posted June 6, 2005 Author Report Share Posted June 6, 2005 Yes, the supercharger's heat exchanger is down in the lower grill opening. In the other photos, you can see the top of it peaking through, where the transmission cooler lines go down. Quote Link to comment Share on other sites More sharing options...
dcairns Posted June 6, 2005 Author Report Share Posted June 6, 2005 Two questions Does anyone know which line is the "hot" side? I was wondering if they are "backwards" in terms of having the return line being the one on top. Where is the stock transmission temperature sender located? I have heard there are a variety of places to monitor the temp, and the hottest temps are after the torque converter spits the oil out. Quote Link to comment Share on other sites More sharing options...
detjoe Posted November 9, 2005 Report Share Posted November 9, 2005 does this part number still exist? I just need large BTU, and threaded fittings on the cooler? Does anyone know about which is the hot side of the two lines are? thanks joe Quote Link to comment Share on other sites More sharing options...
dcairns Posted November 9, 2005 Author Report Share Posted November 9, 2005 Yup, it stll exists, the B&M 70274. It has female 1/2 NPT fittings on the cooler. It took some brass adapters to get me to flare fittings (see the first post). Summit Racing Quote Link to comment Share on other sites More sharing options...
detjoe Posted November 15, 2005 Report Share Posted November 15, 2005 I have been thinking about this too and I was under my truck alot (well less than Zippy was, but still long enough to look) to me it seems that the line that runs from the cooler to the trans is going to be the cool side???you would want the freshly cooled trans fluid going back to the trans, this would be the right line in your picture. This is important b/c I want to keep the stock cooler and add an addition one, but it seems necessary that you know which end needs cooling still...working w/thermodynamic laws will make the system so much more efficent. Does anyone have more info about the hot side or the direction of the fluid flow? or using two stock size coolers??? what is the GVW of the stock cooler? Two questions Does anyone know which line is the "hot" side? I was wondering if they are "backwards" in terms of having the return line being the one on top. Where is the stock transmission temperature sender located? I have heard there are a variety of places to monitor the temp, and the hottest temps are after the torque converter spits the oil out. <{POST_SNAPBACK}> Quote Link to comment Share on other sites More sharing options...
BenKey Posted November 22, 2005 Report Share Posted November 22, 2005 You did the same cooler I did, Dave I even flipped the bracket like you did. GVW of the stock cooler?...... .......about 10 Thing holds about 4ozs of fluid. Bet it didn't even cool the temps 10 degrees in the summer. The one Dave put on holds at least a qt of fluid, or more. Quote Link to comment Share on other sites More sharing options...
